| ODU密封 |
发布日期：2019-12-2 13:07:32
浏览：2282
|
| 产品分类：活塞密封(孔用)
|
| 产品简介： |

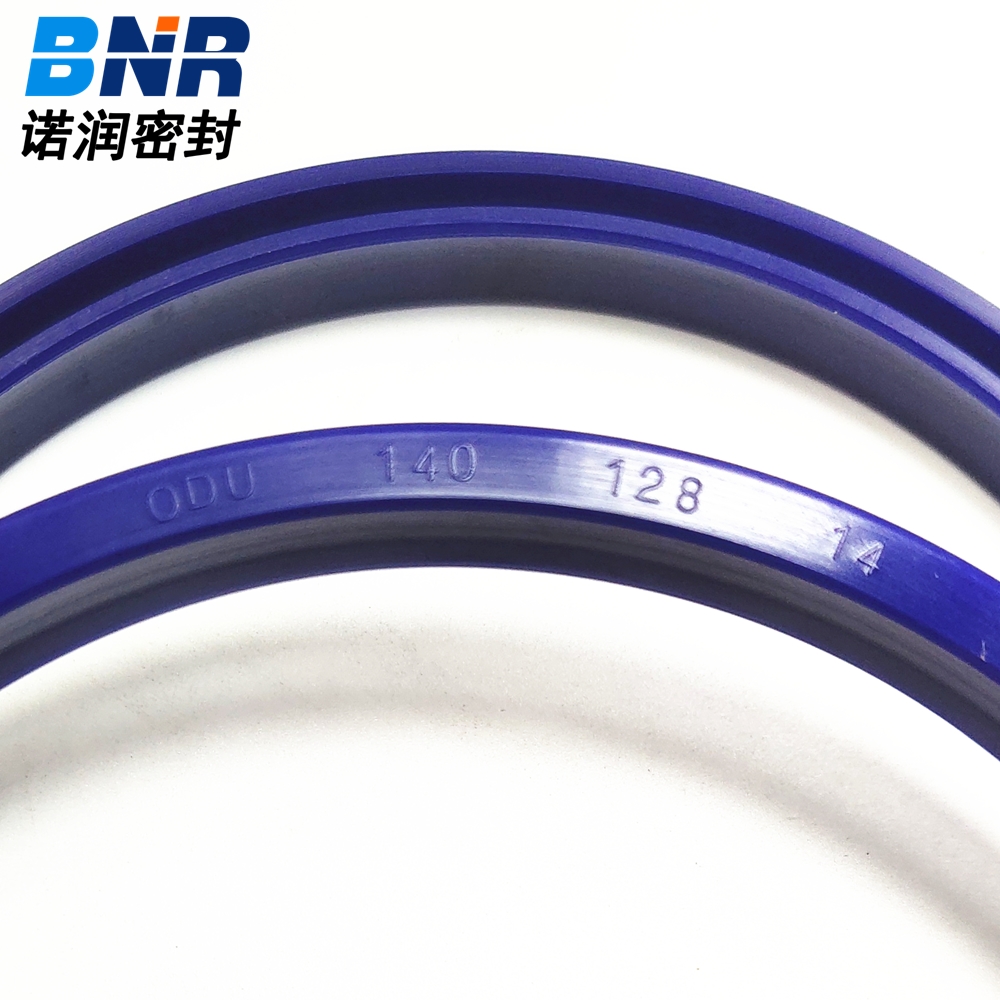

ODU密封圈，采用进口TPU原料，保证耐磨耐压性能优越... |
|
| 订购热线：18932816555 |
 |
|
|
|
|

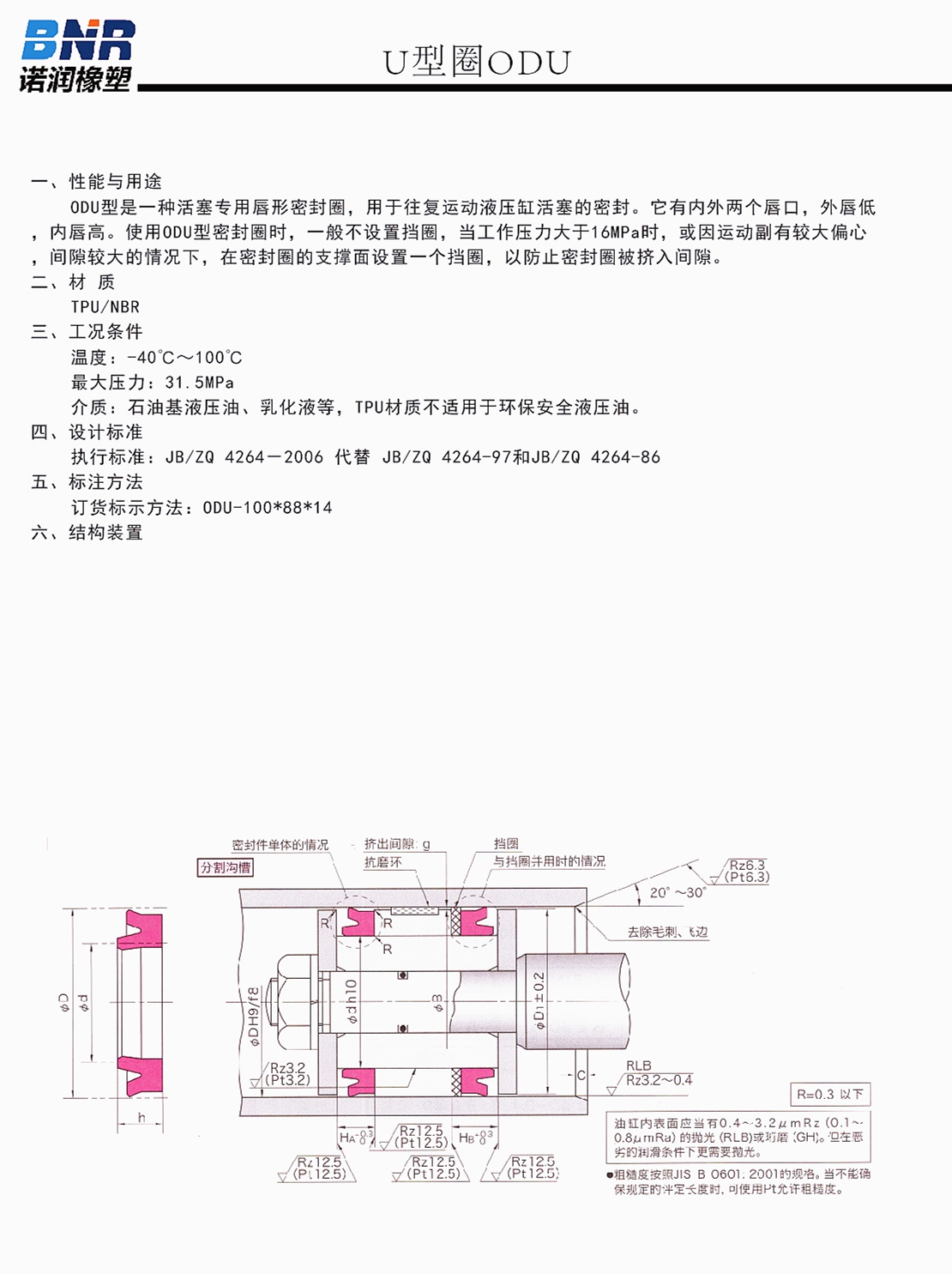

规格及沟槽尺寸
|
订货号 |
D |
d |
H |
S1 |
S2 |
n |
h min |
T |
|
ODU-1812 |
18 |
12 |
8 |
9 |
10.5 |
4 |
2 |
1.5 |
|
ODU-2014 |
20 |
14 |
|
ODU-2216 |
22 |
16 |
|
ODU-2519 |
25 |
19 |
|
ODU-2822 |
28 |
22 |
|
ODU-3022 |
30 |
22 |
10 |
12 |
13.5 |
2.7 |
1.5 |
|
ODU-3224 |
32 |
24 |
|
ODU-3527 |
35 |
27 |
|
ODU-3628 |
36 |
28 |
|
ODU-4032 |
40 |
32 |
|
ODU-4537 |
45 |
37 |
|
ODU-5042 |
50 |
42 |
|
ODU-5547 |
55 |
47 |
|
ODU-5648 |
56 |
48 |
|
ODU-6048 |
60 |
48 |
14 |
16 |
18 |
5 |
4 |
2.0 |
|
ODU-6351 |
63 |
51 |
|
ODU-6553 |
65 |
53 |
|
ODU-7058 |
70 |
58 |
|
ODU-7563 |
75 |
63 |
|
ODU-8068 |
80 |
68 |
|
ODU-8573 |
85 |
73 |
|
ODU-9078 |
90 |
78 |
|
ODU-9583 |
95 |
83 |
|
ODU-10088 |
100 |
88 |
|
ODU-10593 |
105 |
93 |
|
ODU-11098 |
110 |
98 |
|
ODU-115103 |
115 |
103 |
|
ODU-120108 |
120 |
108 |
|
ODU-125113 |
125 |
113 |
|
ODU-130118 |
130 |
118 |
|
ODU-140128 |
140 |
128 |
|
ODU-150138 |
150 |
138 |
|
ODU-160148 |
160 |
148 |
|
ODU-170154 |
170 |
154 |
18 |
20 |
22.5 |
6 |
5.3 |
2.5 |
|
ODU-180164 |
180 |
164 |
|
ODU-190174 |
190 |
174 |
|
ODU-200184 |
200 |
184 |
|
ODU-220204 |
220 |
204 |
|
ODU-230214 |
230 |
214 |
|
ODU-240224 |
240 |
224 |
|
ODU-250234 |
250 |
234 |
|
ODU-280264 |
280 |
264 |
|
ODU-300284 |
300 |
284 |
|
ODU-320296 |
320 |
296 |
24 |
26.5 |
30 |
7 |
8 |
3.0 |
|
ODU-340316 |
340 |
316 |
|
ODU-360336 |
360 |
336 |
|
ODU-380356 |
380 |
356 |
|
ODU-400376 |
400 |
376 |
|
ODU-420396 |
420 |
396 |
|
ODU-450426 |
450 |
426 |
|
ODU-480456 |
480 |
456 |
|
ODU-500476 |
500 |
476 |
|
ODU-530506 |
530 |
506 |
|
ODU-560536 |
560 |
536 |
|
ODU-600576 |
600 |
576 |
|
ODU-630606 |
630 |
606 |
|
ODU-650626 |
650 |
626 |
|
以下规格为企业标准 |
|
ODU-10589 |
105 |
89 |
18 |
20 |
22.5 |
6 |
5.3 |
2.5 |
|
ODU-11094 |
110 |
94 |
|
ODU-120104 |
120 |
104 |
|
ODU-125109 |
125 |
109 |
|
ODU-130114 |
130 |
114 |
|
ODU-140124 |
140 |
124 |
|
ODU-150134 |
150 |
134 |
|
ODU-160144 |
160 |
144 |
|
|
|
|
|
|
|
|
|
|
| |
|
