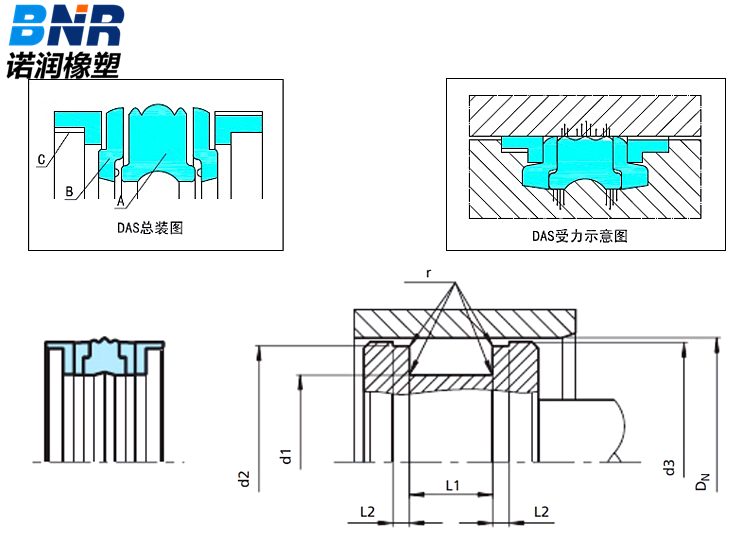

| 型号 |
缸筒直径 |
沟槽直径 |
沟槽宽度 |
活塞直径 |
| Ah9 |
Bh9 |
B1-0.05 |
F+0.2 |
F1+0.1 |
A1-0.2 |
DAS 025-015/1
DAS 025-016
DAS 028-019 |
25.0
25.0
28.0 |
15.0
16.0
19.0 |
21.0
22.0
25.0 |
12.0
13.5
13.5 |
4.0
2.1
2.1 |
23.0
24.0
27.0 |
DAS 030-021
DAS 032-022/1
DAS 032-022 |
30.0
32.0
32.0 |
21.0
22.0
22.0 |
27.0
28.0
28.5 |
13.5
15.5
16.4 |
2.1
2.6
6.35 |
29.0
31.0
30.5 |
DAS 035-025/1
DAS 035-025
DAS 040-024 |
35.0
35.0
40.0 |
25.0
25.0
24.0 |
31.0
31.4
35.4 |
15.5
16.4
18.4 |
2.6
6.35
6.35 |
34.0
33.5
38.5 |
DAS 040-026
DAS 040-030
DAS 040-030/1 |
40.0
40.0
40.0 |
26.0
30.0
30.0 |
36.0
35.4
36.0 |
15.5
16.4
12.5 |
2.6
6.35
4.0 |
39.0
38.5
38.0 |
DAS 040-030/2
DAS 042-028
DAS 045-029 |
40.0
42.0
45.0 |
30.0
28.0
29.0 |
37.0
38.0
40.4 |
12.5
15.5
18.4 |
4.0
2.6
6.35 |
39.0
41.0
44.0 |
DAS 045-031
DAS 045-035
DAS 050-034 |
45.0
45.0
50.0 |
31.0
35.0
34.0 |
41.0
40.4
45.4 |
15.5
16.4
18.4 |
2.6
6.35
6.35 |
44.0
43.5
48.5 |
DAS 050-034/1
DAS 050-038
DAS 055-039 |
50.0
50.0
55.0 |
34.0
38.0
39.0 |
46.0
46.0
50.36 |
20.5
20.5
18.4 |
3.1
4.2
6.35 |
49.0
48.5
53.5 |
DAS 055-039/1
DAS 056-040
DAS 060-044 |
55.0
56.0
60.0 |
39.0
40.0
44.0 |
51.0
52.0
55.4 |
20.5
20.5
18.4 |
3.1
3.1
6.35 |
54.0
55.0
58.5 |
DAS 060-044/1
DAS 060-048
DAS 063-047 |
60.0
60.0
63.0 |
44.0
48.0
47.0 |
56.0
56.0
58.4 |
20.5
20.5
18.4 |
3.1
4.2
6.35 |
59.0
58.5
61.5 |
DAS 063-047/2
DAS 063-047/1
DAS 063-051 |
63.0
63.0
65.0 |
47.0
47.0
51.0 |
58.4
59.0
59.0 |
19.4
20.5
20.5 |
6.35
3.1
4.2 |
61.5
62.0
61.5 |
DAS 065-049
DAS 065-050
DAS 070-050 |
65.0
65.0
70.0 |
49.0
50.0
50.0 |
61.0
60.4
64.2 |
20.5
18.4
22.4 |
3.1
6.35
6.35 |
64.0
63.5
68.3 |
DAS 070-054
DAS 070-058
DAS 075-055 |
70.0
70.0
75.0 |
54.0
58.0
55.0 |
66.0
66.0
69.2 |
20.5
20.5
22.4 |
3.1
4.2
6.35 |
69.0
68.5
73.3 |
DAS 080-060
DAS 080-062
DAS 080-066 |
80.0
80.0
80.0 |
60.0
62.0
66.0 |
74.15
76.0
76.0 |
22.4
22.5
22.5 |
6.35
3.6
5.2 |
78.3
79.0
78.5 |
DAS 085-065
DAS 090-070
DAS 090-072 |
85.0
90.0
90.0 |
65.0
70.0
72.0 |
79.15
84.15
86.0 |
22.4
22.4
22.5 |
6.35
6.35
3.6 |
83.3
88.3
89.0 |
DAS 090-076
DAS 095-075
DAS 100-075 |
90.0
95.0
100.0 |
76.0
75.0
75.0 |
86.0
89.15
93.15 |
22.5
22.4
22.4 |
5.2
6.35
6.35 |
88.5
93.3
98.0 |
DAS 100-082
DAS 100-086 |
100.0
100.0 |
82.0
86.0 |
96.0
96.0 |
22.5
22.5 |
3.6
5.2 |
99.0
98.5 |
DAS 105-080
DAS 110-085
DAS 110-092 |
105.0
110.0
110.0 |
80.0
85.0
92.0 |
98.1
103.1
106.0 |
22.4
22.4
22.5 |
6.5
6.35
3.6 |
103.0
108.0
109.0 |
DAS 110-096
DAS 115-090
DAS 115-097 |
110.0
115.0
115.0 |
96.0
90.0
97.0 |
106.0
108.1
111.0 |
22.5
22.4
22.5 |
5.2
6.35
3.6 |
109.4
113.0
114.0 |
DAS 120-095
DAS 120-106
DAS 125-100 |
120.0
120.0
125.0 |
95.0
106.0
100.0 |
113.1
116.0
118.1 |
22.4
22.5
25.4 |
6.35
5.2
6.35 |
118.0
118.5
123.0 |
DAS 125-103
DAS 125-108
DAS 130-105 |
125.0
125.0
130.0 |
103.0
108.0
105.0 |
121.0
121.0
122.6 |
26.5
26.5
25.4 |
5.2
7.2
9.5 |
124.0
124.4
127.5 |
DAS 130-105
DAS 135-110
DAS 135-110/1 |
130.0
135.0
135.0 |
105.0
110.0
110.0 |
123.1
127.6
128.1 |
25.4
25.4
25.4 |
6.35
9.5
6.35 |
128.0
132.5
133.0 |
DAS 140-115
DAS 140-115/1
DAS 140-118 |
140.0
140.0
140.0 |
115.0
115.0
118.0 |
132.6
133.0
136.0 |
25.4
25.4
26.5 |
9.5
6.35
5.1 |
137.5
138.0
139.0 |
DAS 140-123
DAS 145-120
DAS 145-120 |
140.0
145.0
145.0 |
123.0
120.0
120.0 |
136.0
137.6
138.3 |
26.5
25.4
25.4 |
7.2
9.5
6.35 |
138.5
142.5
142.95 |
DAS 150-125
DAS 150-125
DAS 150-128 |
150.0
150.0
150.0 |
125.0
125.0
128.0 |
142.6
143.0
146.0 |
25.4
25.4
26.5 |
9.5
6.35
5.1 |
147.5
148.0
149.0 |
DAS 150-133
DAS 155-130
DAS 160-135 |
150.0
155.0
160.0 |
133.0
130.0
135.0 |
146.0
147.6
152.6 |
26.5
25.4
25.4 |
7.2
9.5
9.5 |
149.5
152.5
157.5 |
DAS 160-138
DAS 160-143
DAS 165-140 |
160.0
160.0
165.0 |
138.0
143.0
140.0 |
156.0
156.0
157.6 |
26.5
26.5
25.4 |
5.1
7.2
9.5 |
159.0
159.4
162.5 |
DAS 170-145
DAS 175-150
DAS 180-150 |
170.0
175.0
180.0 |
145.0
150.0
150.0 |
161.7
166.7
172.95 |
25.4
25.4
35.4 |
12.7
12.7
6.35 |
167.1
172.1
177.87 |
DAS 180-155
DAS 185-160
DAS 190-165 |
180.0
185.0
190.0 |
155.0
160.0
165.0 |
171.7
176.7
181.7 |
25.4
25.4
25.4 |
12.7
12.7
12.7 |
177.1
182.1
187.0 |
DAS 195-170
DAS 200-175
DAS 210-185 |
195.0
200.0
210.0 |
170.0
175.0
185.0 |
186.7
191.6
201.6 |
25.4
25.4
25.4 |
12.7
12.7
12.7 |
192.0
197.0
207.0 |
DAS 220-190
DAS 220-195
DAS 230-205 |
220.0
220.0
230.0 |
190.0
195.0
205.0 |
212.7
211.6
221.6 |
35.4
25.4
25.4 |
6.35
12.7
12.7 |
217.0
217.9
227.0 |
DAS 240-215
DAS 250-220
DAS 250-225 |
240.0
250.0
250.0 |
215.0
220.0
225.0 |
231.6
242.9
241.6 |
25.4
35.4
25.4 |
12.7
6.35
12.7 |
237.0
247.85
247.0 |
